WD Black SN850X Vs. Samsung 990 PRO: Clash of the Titans

The 990 PRO is still Samsung's flagship M.2 SSD in late 2023. Although there are now faster PCI-Express 5.0 (Gen5) SSDs in the consumer market, Samsung is biding its time before releasing an SSD for the new interface.

Western Digital is also holding back on Gen5, meaning that the WD Black SN850X is still the fastest NVMe SSD from WD at the time of writing. This follows the launch patterns from Gen4, with a range of nearly identical SSDs based on a Phison controller being the only alternatives for several months after the rollout of a new interface.

In any event, the WD Black SN850X and Samsung 990 PRO are two of the fastest Gen4 SSDs to date. And it's quite likely that they will keep their top spots indefinitely – not just because manufacturers and users move to Gen5 SSDs, but also because they largely max out the Gen4 interface.

SN850X Vs. 990 PRO: Specifications

This table compares the 2TB capacities. Specifications for the full lineups can be found at the bottom of this page.

When simply comparing the specifications, it certainly looks like the Samsung 990 PRO is a clear winner.  Even if the WD Black SN850X is substantially faster than many competitors, it lags behind the Samsung flagship in all performance metrics.

Both SSDs use an onboard DDR4 buffer and offer identical warranty and endurance terms. Samsung uses its in-house controller and NAND Flash memory chips, and the same goes for WD, which uses a controller/NAND combo from its subsidiary SanDisk.

SN850X Vs. 990 PRO: Performance

Of course, specification tables cannot be directly translated into real-world performance. Here's how the two SSDs differ in our own data. Note that we are comparing the 2TB Samsung 990 PRO with the 4TB WD Black SN850X. The 2TB and 4TB WD drives nevertheless come with identical specs, so this shouldn't noticeably affect the results.

The test system consists of an MSI Z790 Carbon motherboard, Core i7-13700K(F) CPU, and 32 GB of Kingston DDR5-6000 CL36 RAM. All drives are tested in the same M.2 slot.

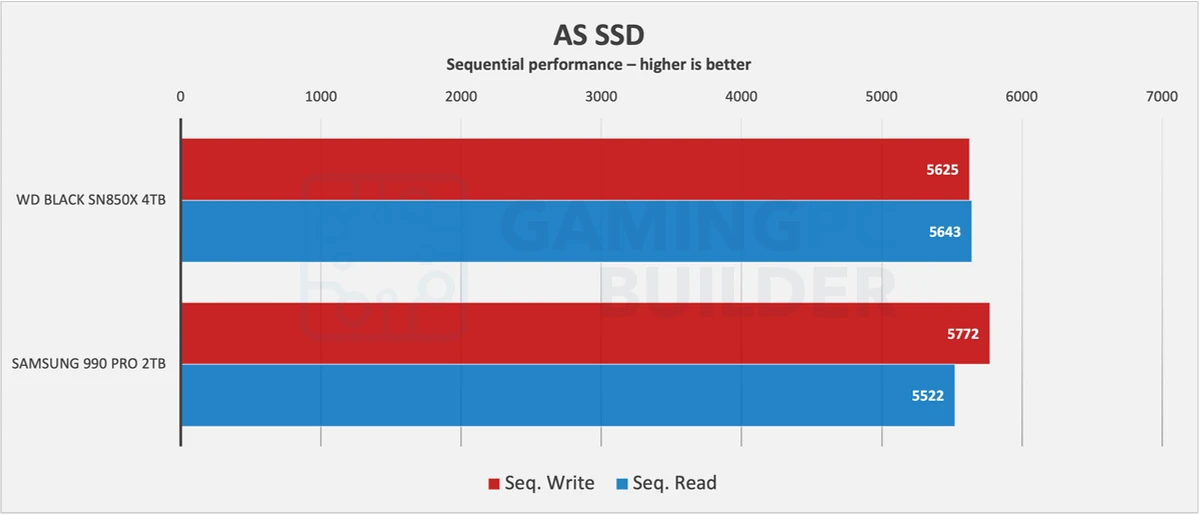

AS SSD Sequential Performance

AS SSD uses incompressible data and the sequential performance results are typically far below what you see in the spec sheets. Both the SN850X and 990 PRO are very fast in this particular benchmark. The Samsung drive is slightly ahead in the sequential write area, whereas the SN850X is in the lead in terms of read speeds.

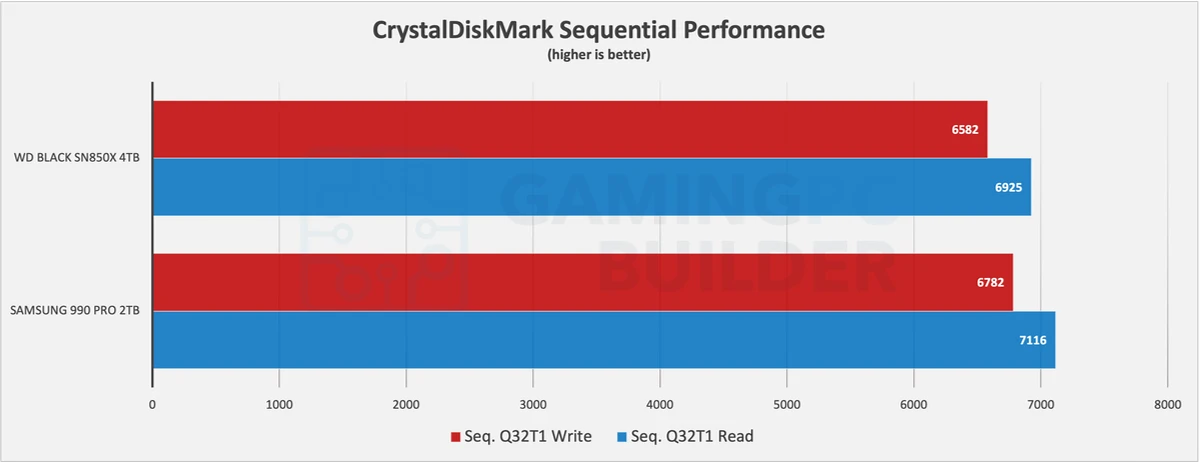

CrystalDiskMark Sequential & Random Performance

In the CrystalDiskMark benchmark, the numbers are typically more in line with the specification tables. The Samsung 990 is marginally ahead of the WD Black SN850X by about 3% in sequential reads/writes.

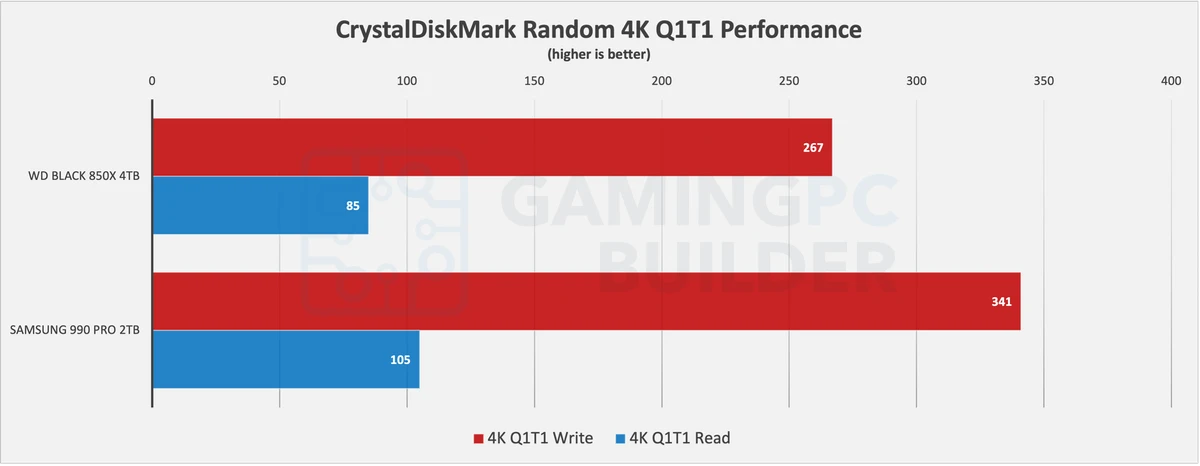

Random performance at minimum queue depths is often a better indicator of overall performance in many real-world scenarios. Here, the Samsung 990 PRO holds a clear lead over its rival by 23,5% (read) and 28% (write).

Latency (Anvil's Storage Utilities)

Latency is another important metric that corresponds to actual performance in a range of workloads. Again, the Samsung 990 PRO is about 20% faster than the WD Black SN850X.

SN850X Vs. 990 PRO: Real-World Performance

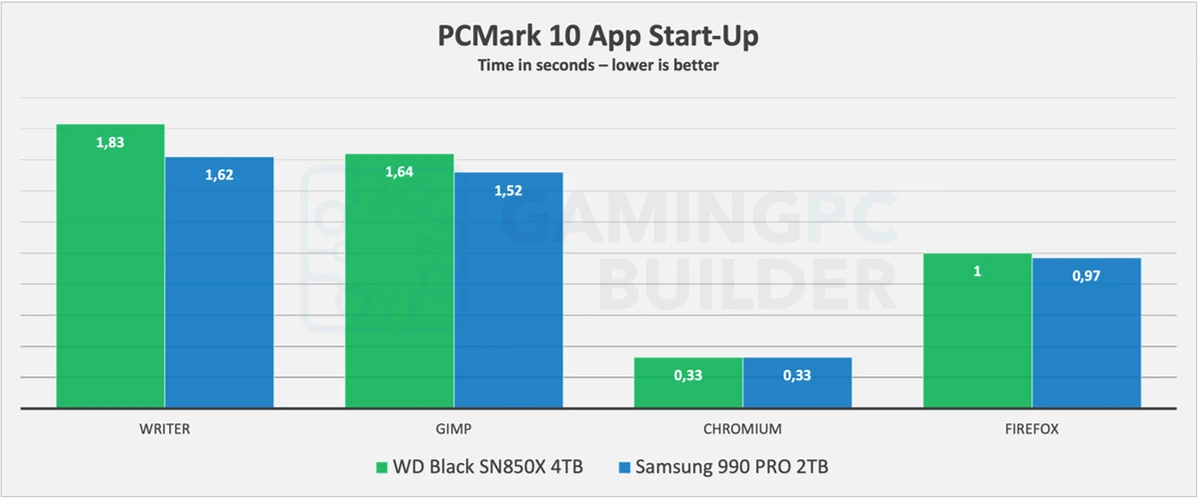

The App Start-up times (cold start) from PCMark 10 show that the Samsung SSD is slightly faster on average, but is not necessarily faster than the SN850X in all situations.

The same thing applies to the standalone Final Fantasy Shadowbringer benchmark, where loading times for five different game levels are combined into a total. Only a few insignificant milliseconds separate the two SSDs. As long as DirectStorage is not involved, even an SSD in an M.2 enclosure can rival high-end internal SSDs in this benchmark (and likely in more than a few actual games).

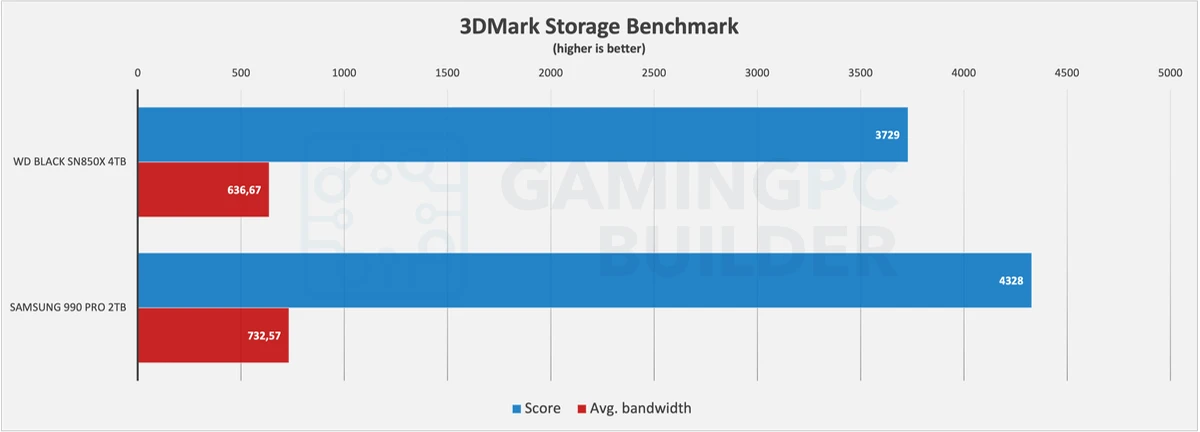

3DMark Storage Benchmark

UL's 3DMark Storage Benchmark combines a range of gaming workloads – not just loading times, but also copying and recording games. The Samsung 990 PRO comes out ahead of the WD Black SN850X by 15% as measured in average bandwidth.

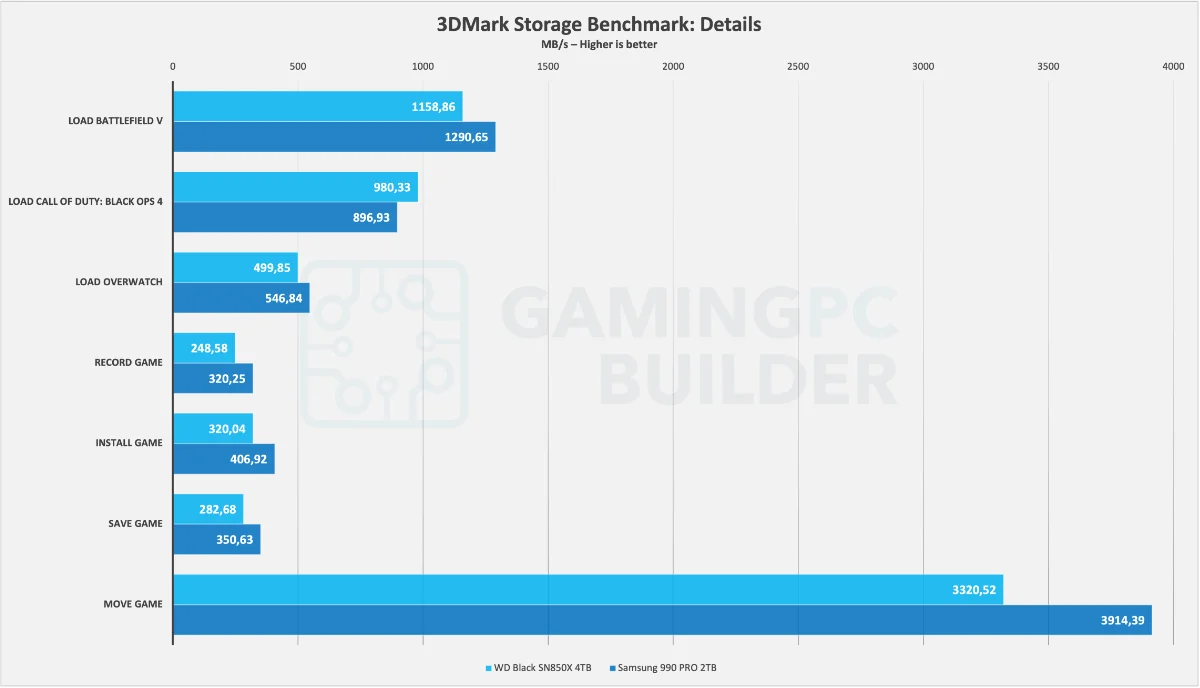

Here's a breakdown of the individual results.

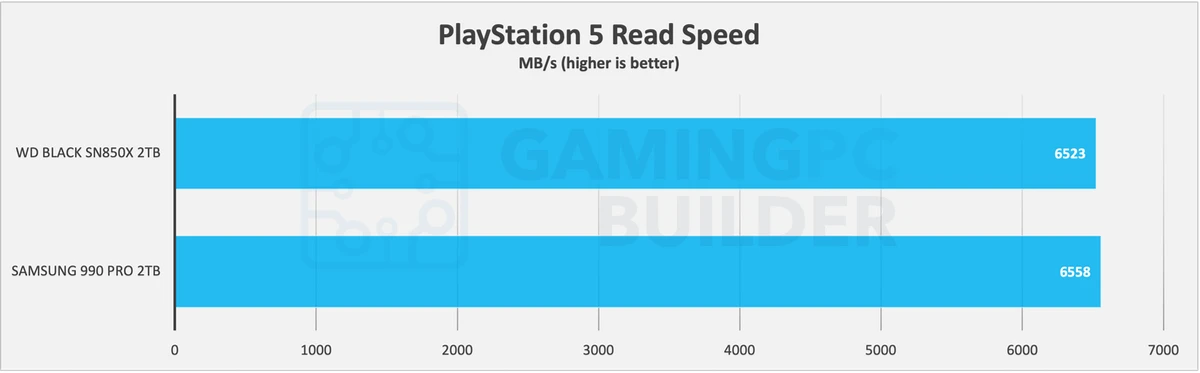

PlayStation 5 Read Speed Test

Although non-compliant drives like the SN770 will also work with the PS5, the Samsung 990 PRO or WD Black SN850X are better suited as storage expansions SSDs for the PlayStation 5 console. You should opt for the versions with a heat spreader to be fully in line with Sony's recommendation. In the simple read-speed test, the difference between these flagship drives is negligible.

Conclusion

On average, Samsung's 990 PRO is faster than the Western Digital WD Black SN850X. However, it is not necessarily faster by amounts that are noticeable in the real world. Either of these SSDs is a good choice for a high-end gaming PC build in 2023 or as a storage add-on for the PS5.

read more:

• Full review of the 2TB 990 PRO
• Full review of the 4TB WD_Black SN850X
• Comparison of the WD_Black SN850X Vs. SN770
• Comparison of the WD_Black SN850X Vs. SN850 (non-X)
• Ranking of the best M.2 SSDs
• Ranking of the fastest SSDs overall (incl. SATA)

Samsung 990 PRO Series Specifications

WD Black SN850X Series Specifications
